Cash & Payment
Cash & Payment Processing Devices
Cash Dispensing Module
VCDM-EXT

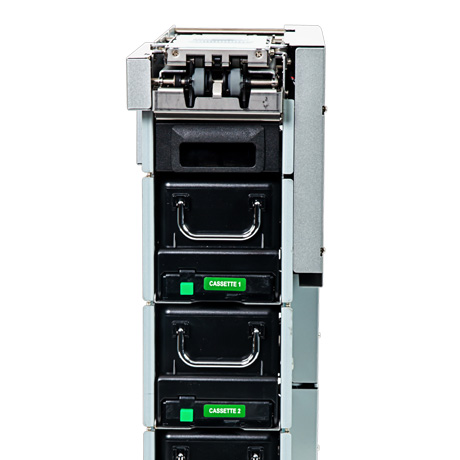

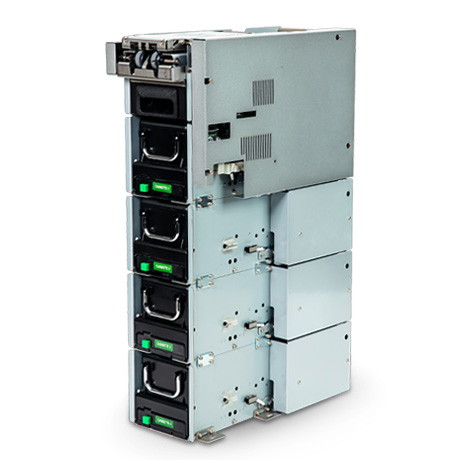

Short-edge Cash Dispensing Module Extension (OEM Banknote Dispenser)
Features
- The Best Space Efficiency by Short-edge Dispensing
- The Highest Dispensing Speed among Short-edge Dispensers
- Innovative Double Note Detection Technology by Ultrasonic Sensor
- Easy Maintenance of Open Guide Structure and Ergonomic Designccessible path guides delivers the easiest maintennce for users.
Specification
| Model | VCDM-100E / 200E / 300E / 400E | ||
| Type | Short-edge Dispenser | ||
| Spray Type | |||
| Spec | Denomination | 1/2/3/4 | |
| Dimension (W×D×H mm) | 1 Deno : 169×349×220 | ||
| 2 Deno : 169×349×330 | |||
| 3 Deno : 169×349×440 | |||
| 4 Deno : 169×349×550 | |||
| Access Type | Front Access | ||
| Speed Range | 3.2 notes/sec | ||
| Media Size | Height | 62~82 mm | |
| Width | 120~165 mm | ||
| Thickness | 0.06~0.2 mm | ||
| Double Detect | Ultra Sonic Sensor | ||
| Cassette Capacity | 500 notes | ||
| Reject Capacity | About 10~30 notes | ||
| Near End Detection | About 30~50 notes(Option) | ||
| Pickup/Feeding Type | Friction / Roller to Roller | ||
| Interface | RS232C | ||
| Power | DC 24V +/-10% , 8.5A at maximum | ||
