RF Ticket Processing Module
TIU, TCU

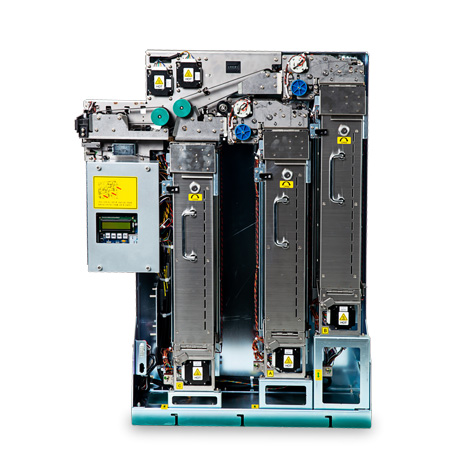

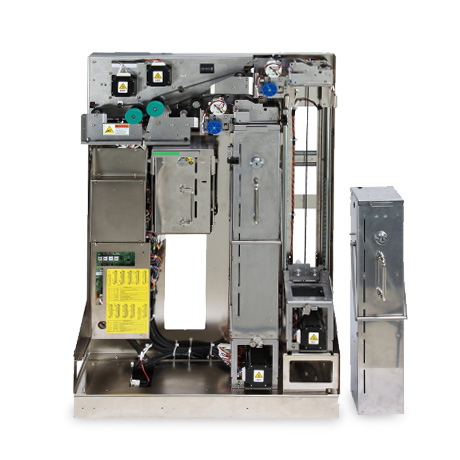

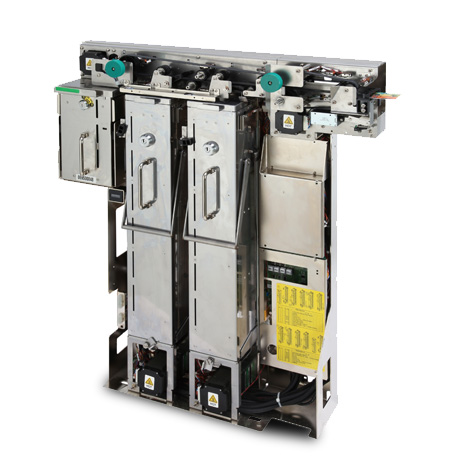

RF Ticket Issuing & Capture Unit
Features
- High Reliability in RF Ticket Processing
- RF Ticket Issuing and Capturing Unit
- High Speed Processing (TIU: 1sec/ticket, TCU: 0.5 sec/ticket)
Specification
| Model | TIU | TCU |
| Ticket Size | 54 × 85.6mm | 54 × 85.6mm |
| Ticket Thickness | 0.5mm | 0.5mm |
| Recognition Time | 1.0 sec/ticket | 1.0 sec/ticket |
| Max Capacity of Token Issuance | 2,000 Ticket | 2,000 Ticket |
| Cassette Capacity | 1,000 Ticket/Cassette × 2 Pieces of Cassette | 1,000 Ticket/Cassette × 2 Pieces of Cassette |
| Collection Box of Improper Ticket | 300 Ticket | 300 Ticket |
| Electronic ID | Assigned to each Cassette and Collection Box | Assigned to each Cassette and Collection Box |
| Interface | RC 232C | RC 232C |
| Voltage | 24V±10% | 24V±10% |
| Current | Max. 7A | Max. 7A |
| Dimension(Max.) | Width : 180±1.0mm | Width : 165±1.0mm |
| Length : 595±1.0mm | Length : 675±1.0mm | |
| Height : 940±1.0mm | Height : 800±1.0mm | |
| Net Weight | App. 40kg (W/O Ticket Cassette & Collection Box) | App. 40kg (W/O Ticket Cassette & Collection Box) |
