Swing Door

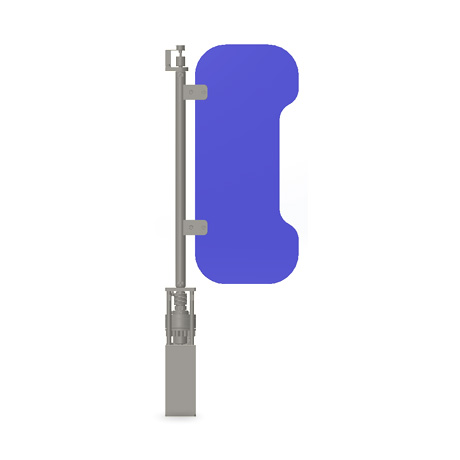

Swing Door (SD)
Features
- Maximizing flexibility with Ultra-small design
- Servo motor, easy to maintain, MCBF up to 10 million times
- Smooth, quick and agile movements for passenger flow
- Design to protect passengers in the event of a security incident
- Emergency switch available / automatic door open & Close
Specification
| Model | Swing Door (SD) |
| Open/Close Type | Horizontal rotation open and close method / / Rotation angle 90±2° |
| Operation UNIT | BLDC Motor |
| Position control method | Potentiometer |
| Emergency | Automatic Door Open |
| Operation Speed | 0.4 s (0.3s ~ 1s) Adjustable speed |
| MCBF / MTTR | 1,000,000 Times |
| Life time | 10,000,000 |
| Door Force Open | 400 ±30% N |
| Door Close Impact | ≤ 150 N |
| Serial Interface | 2Ports of RS232(MAIN 1EA,DEBUG 1EA) |
| Motor Drive | BLDC Motor Speed Control |
| MCU | ARM Cortex M4 32-Bit Microprocessor |
| MEMORY | - Up to 1Mbytes Flash memory (Internal) - Up to 192Kbytes SRAM (Internal) - 128Kbits EEPROM (External) |
| Operation Temperature | -20℃ ~ 50℃ |
| Dimension | 962±2.0mm (H) x 260±2.0mm (L) x 80±2.0mm (W) |
| Aisle Width | 550mm(Normal), 900mm(Wide) |
| Weight | ≤ 18.5kg / ≤ 21.5kg |
