Sliding Door

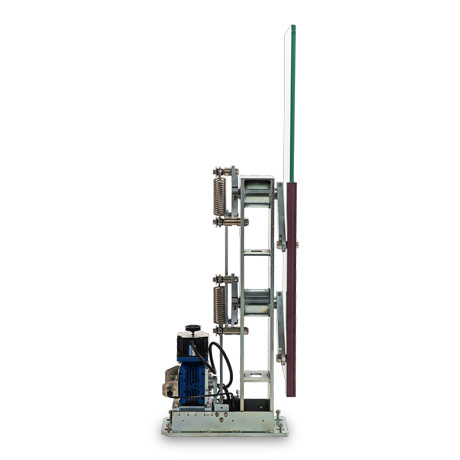

Sliding Door Module (SDM)
Features
- Ultra-quiet Operation
- Permits Natural Walk-through with Fast Processing
- Durability Guarantees more than 5 million Trouble-free Operations
- Convenient Maintenance
Specification
| Model | Sliding Door Module (SDM) |
| Driving Mechanism | Link, Crank, Worm Gear Mechanism |
| Motor | DC Motor / BLDC Motor |
| Operation Mode | Normal Open & Normal Close |
| Operation Speed | 0.8sec ~ 2.0sec |
| Command Method | Input of TTL-Level Signal |
| Motor Drive Power | External DC+24V/3.75A Max(Optional AC/DC SMPS) |
| Control Board Power | External DC+24V(±10%)/3.5A Max |
| Command I/O | 3 Control Signal(Input), Proximity Sensor(Output) |
| Door Dimension | 280(W) × 1000(H) × 12(T) mm |
| Door Material | 12mm Tempered Glass |
| Operating Temperature | 0℃ ~ 45℃ |
| MCU | ARM Cortex M4 32-Bit Microprocessor |
| MEMORY | - Up to 1Mbytes Flash memory (Internal) - Up to 192Kbytes SRAM (Internal) - 128Kbits EEPROM (External) |
| Operation Temperature | -20℃ ~ 50℃ |
| Dimension | 962±2.0mm (H) x 260±2.0mm (L) x 80±2.0mm (W) |
| Aisle Width | 550mm(Normal), 900mm(Wide) |
| Weight | ≤ 18.5kg / ≤ 21.5kg |
