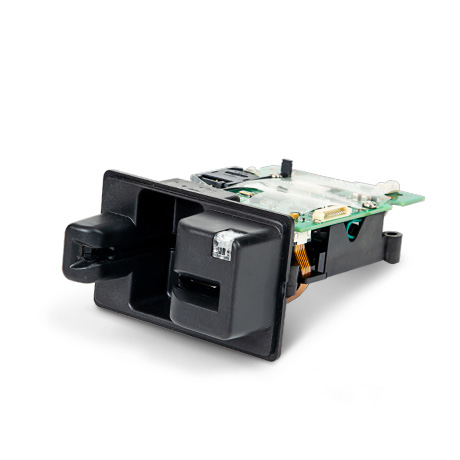

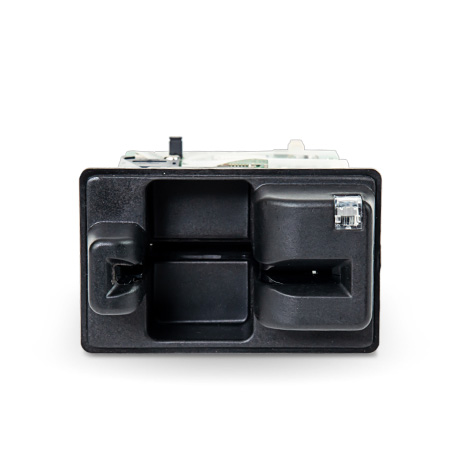

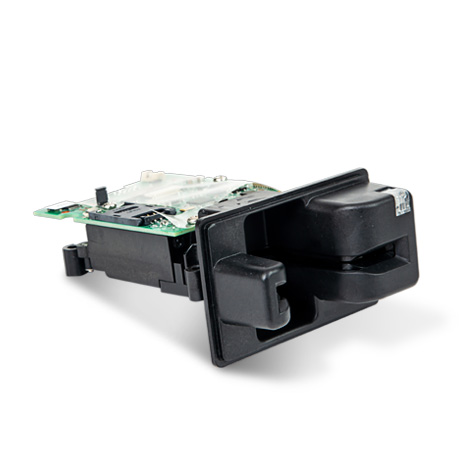

Hybrid Card Reader
PDCR
Manual Hybrid Card Reader
Features
- Secure and Convenient Solution with Hybrid Feature (Smart Card and Magnetic Card)
- Robust Design based on Simple and Durable Mechanism
- Remarkable Recognition Rate for M/S Reading
- Guaranteed Security Feature Certified by EMV 2000 Level 1
- Built-in SAM(Security Access Module) Socket and Optional Extension
Specification
| Model | PDCR-100 |
| Dimension (H x W x D) | 50 x 80 x 140mm |
| Weight | 150G |
| Card Operation | Manual Insertion & Pull-out |
| Interface | RS232C (USB Optional) |
| SAM | SIM TYPE (1 : Built-in, 4 : Optional) |
| APPROVAL | EMV LEVEL 1 |
| APPLICABLE CARDS | 1. Magnetic Card ISO/IEC 7810,7811,7813 |
| 2. IC Card ISO/IEC 7816/1-3, EMV'96 VER.3.1.1, EMV2000 VER.4.0 | |
| MAG. STRIPE READ | ISO TRACK NO.1.2 and 3 |
| READING SPEED | 10~100cm/s |
| POWER | 12V, 400mA |
| ENVIRONMENT | Operation Temperature : -20℃ ~ 50℃ Operation Humidity : 10% ~ 95% RH |
| LIFE TIME | More than 1,000,000 passes |
| BEZEL | Plastic Bezel with LED Indicator / Metal Bezel |
Download
