Check Scanning Module
PCSU

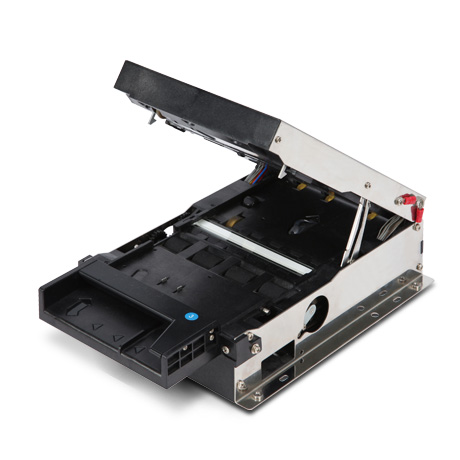

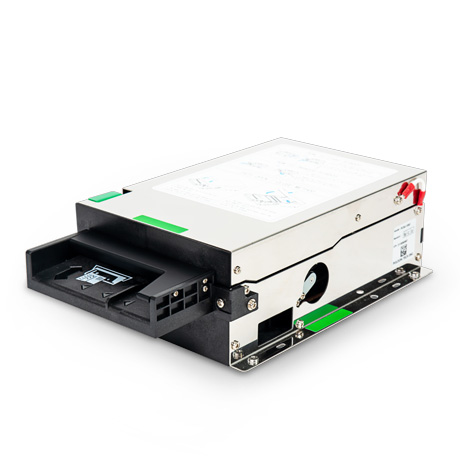

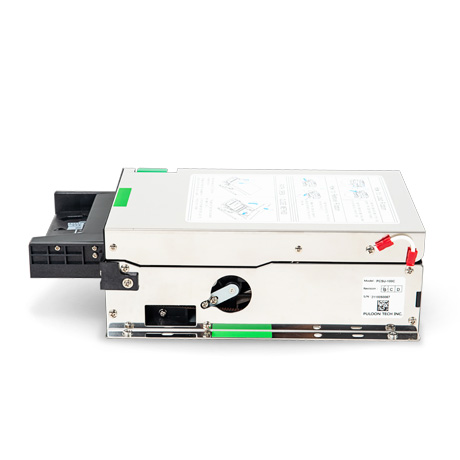

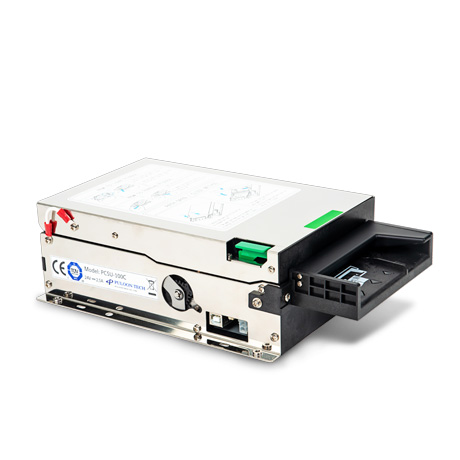

Check Scanner with Endorsement Printer
Features
- Head Type Check Scanner available for E13B and CMC7
- Duplex Scanner with CIS(Contact Image Sensor)
- Transferring Image at USB2.0 High Speed
- One Line Endorsing Printer by 9 Pin Dot Matrix
Specification
| Model | PCSU (Check Scanner) | |
| Dimension (W×D×H mm) | 170 × 230 × 80 (Excluding Inlet Bezel) | |
| 170 × 286 × 80 (Including Inlet Bezel) | ||
| Weight | 2.2kg | |
| Media Size | W:60~110mm/L:130~230mm/T:0.08~0.13mm | |
| Image Scan | Range | A6 size(105mm), Duplex Scan |
| Method | Color CIS | |
| Resolution | 200 dpi basic spec, 256 Gray Scale | |
| Speed | 500mm/s | |
| MICR Recognition | E13B & CMC7 | |
| Double Detection | Optical Sensing Type | |
| Endorsement | Position | Backside of media |
| Characters | 57 characters (max.) | |
| Scanning after Endorsement | 51 characters (max.) | |
| Line | 1 line | |
| Type | dot impact | |
| Size | 12 cpi | |
| Fonts | Alphabet/Numeric/Symbol | |
| Lifecycle of Ribbon | 100,000 characters (min.) | |
| Feeding Speed | Faster than 500mm/sec | |
| Inlet | Insertion | One by one, Manual insertion |
| Insert Direction | Automatic left-side aligned within 20° | |
| Interface | USB 2.0 High speed | |
| Power | DC 24V±10% | |
