Cash Dispensing Module
LCDM

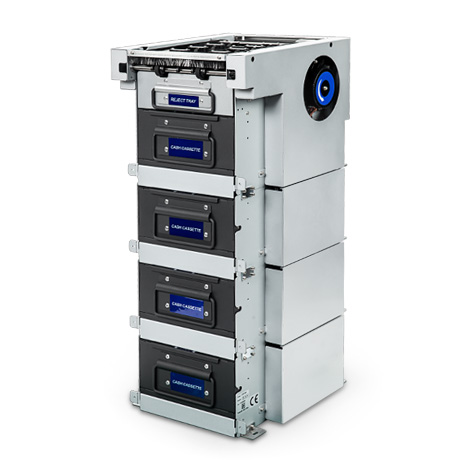

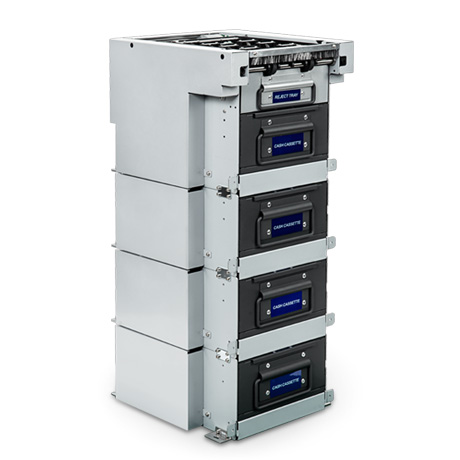

Low-cost Cash Dispensing Module (OEM Banknote Dispenser)
Features
- Low-cost and Compact Cash Dispenser
- 1, 2 and 4 Denomination Available
- High Reliability and Easy Maintenance
Specification
| Model | LCDM 1000 / 2000 / 4000 | |
| General Specification | Denomination | 1/2/4 |
| Dimension (unit : mm) | LCDM-1000 : 270.5(W) × 310.2(D) × 225(H) | |
| LCDM-2000 : 270.5(W) × 310.2(D) × 356(H) | ||
| LCDM-4000 : 270.5(W) × 310.2(D) × 618(H) | ||
| Speed | 3.5 notes/sec | |
| Reject Tray Capacity | App. 10~30 notes | |
| Net Weight | 9 kg / 14kg / 24 kg | |
| Access Type | Front Access | |
| Interface | RS232C | |
| Voltage | DC 24V (±10%) | |
| Current | 3A / 4A / 5A | |
| Cassette | Dimension (unit : mm) | 191(W) x 161(D) x 93(H) |
| Net Weight | 1.8kg | |
| Note Size | Width : 62 ~ 78mm | |
| Length : 100 ~ 162mm | ||
| Thickness : 0.06 ~ 0.16mm | ||
| Capacity | 123 mm ( App. 1,000 new notes ) | |
| Pick-up | Friction Roller | |
| Near-end | About 10~30 notes | |
