Optical Character Reader

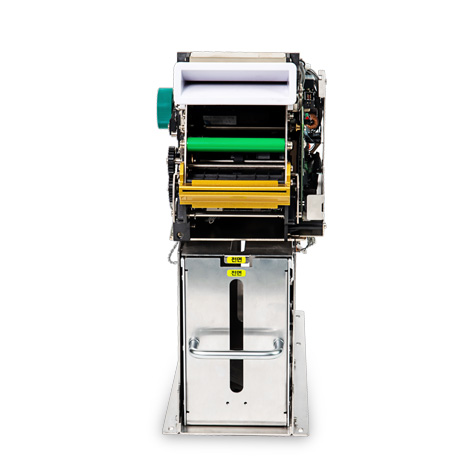

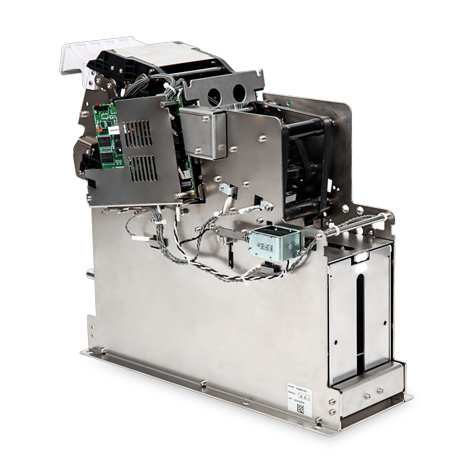

KOBRA-550
Optical Mark-up Reader
Features
- High-speed reading at 0.6 seconds per sheet
- Minimization of misreading and unrecognition by optical control technology
- Implementation of efficient path design minimizing mechanical jam.
- Easy assembly and disassembly structure considering easy maintenance
- Maximization of maintainability by easy replacement design of branding TPH
- Implementing Self-testing & Diagnosis function
Specification
| Model | KOBRA-550 | |
| Reading | Reading Type | OMR / Barcode |
| Reading Method | Dual Contact Image Sensors (CISs) | |
| Injection Direction | Betting Slip : 4 ways / Voucher : 2 ways | |
| Reading Chanel | Scanning Channel : Variable Timing Mark Channel : Variable |
|
| Media Specification | W : 82.5mm L : 76~230mm T : 85~150μm | |
| Feeding Speed | 635mm/s | |
| CIS Specification | Resolution : 200dpi / Light Source : Red / Scan width : 88mm | |
| Double Detection | Available | |
| Branding | Branding Method | Thermal Printing System (TPH) |
| Branding Speed | 150mm/sec | |
| Print sharpness | 200 x 120 dpi | |
| Branding Check Function | Possession | |
| Stacking | Ticket Stack Function | Stack Available |
| Control | Communication Type | RS 232C |
| Download Function | Possession | |
| Status Check | External LED Display | |
| Rated power supply voltage | DC 24V±10% | |
| Current Consumption | Waiting Time: 300mA / Normal: 3.3A / Maximum: 11A | |
| Others | Dimension | 1.47 / 201(D) x 143(W) x 159(H) |
| Weight | 2.2 Kg | |
| Operating Temperature | 5℃ ~ 40℃ | |
