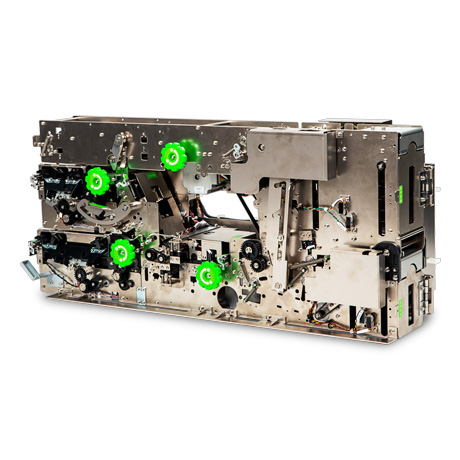

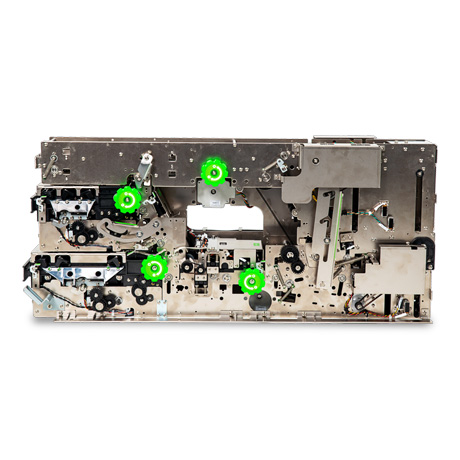

Automatic Sorter for Betting Slip
ASHU
Automatic Sorting Machine for Betting Slip
2. 4-way OMR recognition by dual light CISs and branding function by TPH
3. Independent inlet for marking card and voting form
4. Bundle feeding, bundle escrow and bundle return function implemented
Features
- 20 Notes Bundle Insert / Bundle Retract / 1 Note Reject
- Dual-Sided CIS Scanner : 300 DPI
- Automatic Recognition of OMR, Barcode & QR code
- High Speed Thermal Printing of Receipt of Lottery
- High Capacity Stacking Box
Specification
| Model | ASHU |
| DIMENSION | 250(W)x600(D)x300(H) mm / 200(W)x300(H)x692(D) mm |
| Input Method | 20 sheets or less bundle per batch (long direction) |
| Reading Section | Reading Method: OMR/BARCODE |
| Material Used: Mark Card 82.5x144~150mm, t=0.12mm Voting form (800pcs) 51.5x85.5mm, t=0.12mm Voting form (Normal) 51.5x90mm, t=0.12mm |
|
| Direction : Mark card, Voting form (four directions) | |
| Processing time : 2 second/pc | |
| CIS specification : 300dpi / 570nm / scan width 108mm | |
| Branding | Branding Type : Thermal Printing |
| Factor Speed/Resolution : 150mm/s, 200dpi | |
| Stacking | Stacking Type : Forced stacking driven by pusher |
| Loading Capacity : Mark Card 500 pcs, Voting Media 300 pcs | |
| Double Detection Type | Ultrasonic Method |
| Power on Branding | 24V±10% |
| Operating Environment | 0~45℃, 20%~80% RH (Terminal) |
| Communication Type | USB 2.0 |
