AG Series

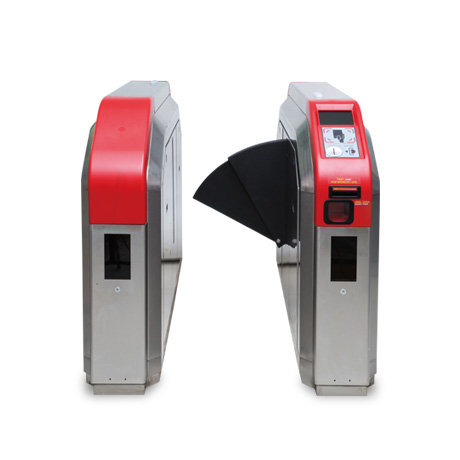

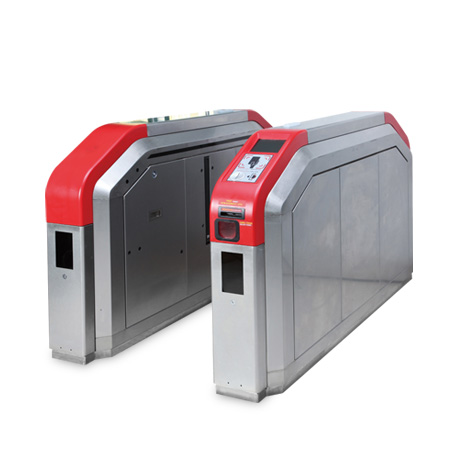

Automatic Control Gate, AG Series
Features
- Accepting and Collecting RF Token as One Time Ticket
- Design Considering Passenger Safety at Highest Priority
- Reading, Checking & Verifying of Contactless Card During Processing
- Available Two Types of Gates (Normal or Wide)
Specification
| Model | AG Series | ||
| Cabinet (Enclosure) | Dimension(mm) | Normal : 2000(W)×1100(H)×280(D) | |
| Wide : 2000(W)×1100(H)×300(D) | |||
| Material | 1) Material: Stainless steel, Finishing: Vibration 2) Plastic top cover (for Entry, Exit, Dummy) |
||
| Electronic Control Unit (ECU) | Processor | Soldered onboard Intel® Atom D510 1.66GHz | |
| Memory | 1GB DDR2 SO-DIMM | ||
| Disk | Compact Flash : 2GB | ||
| Sector Door | Type | Normal Type | Wide Type |
| Operation speed | ≤ 0.5 sec | ≤ 0.7 sec | |
| Material | Polyurethane Foam | ||
| Token Capturing Unit (TCU) | Token Container Capacity | 1000 pieces/container, Customization Available | |
| Passenger Information Display(PID) | Type | LCD Screen | |
| Screen Size | 6.5 Inch (Diagonal) | ||
| End display | LED | Red, Green, Blue, Yellow | |
| Passenger Detecting Sensor | Sensor | 20 sets | |
| Power Supply Unit(PSU) | Input voltage (V) | AC176 ~ 265 | |
| Uninterrupted Power Supply(UPS) | Rated Capacity | 750VA (500W) | |
| Concession Lamp | LED | Yellow/ Red/ Green | |
